µE Sys 电子系统
Matrix Systems, Ltd.
Hi-end Electronics System Design & Assembly Services
Electronic System Design, Development, Prototyping, Implementations, and Manufacturing
Matrix Systems
Product
Multi-device 10M-gate FPGA Embedded System
Business Model
System & SoC Design Services, FPGA Emulator custom-design, & product sales
Market Domain
Application Solutions to Fabless IC providers & System Manufacturers
Luo, Guo, Tay
System Design Technologies
System Application Solution Dev.
WSN Mote Module Design
Sys Integration w/ Sensor Solutions
International Customers & Partners
System Pre-sale & Support
Enabling High-Margins in Systems Designs
State-of-the-art System Design
- Hi-density SoC FPGA Verification Platform & Application Solutions.
- Applications: R&D environment upgrades, developing market-standard products, replacing and enriching import products, realizing industrial-grade quality and performance.
- Advantages: precision PCB layouts, verified high-speed signal integrity, sorted and qualified components, lead-free assembly, and QA.
- Standards: meets North American and Asia-Pacific standards and proof with high-reliability, made in China.
Enabling Technologies and Skills
- SoC-based systems: MIPS (IDT/PMC/ICT), ARM (Atmel/Samsung/Marvel), PowerPC (Freescale and IBM), OpenRISC Compatible (proprietary)
- Custom FPGA systems: Altera Stratix II based, multiple FPGA interconnect
- Connectivity: SysAD, PCI, PCIe, I2C, I2S, AC’97, LVDS, PATA, SATA, DDR/DDR-2, etc. internal bus
- Ports: Serial, USB, HDMI, VGA, Video, S/PDIF, etc.

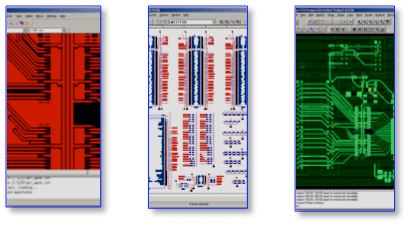

PCB Design Automation

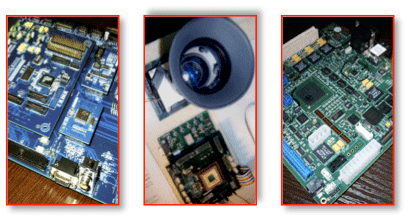

SoC Centered Systems

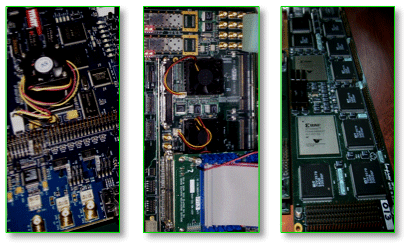

FPGA Based Systems

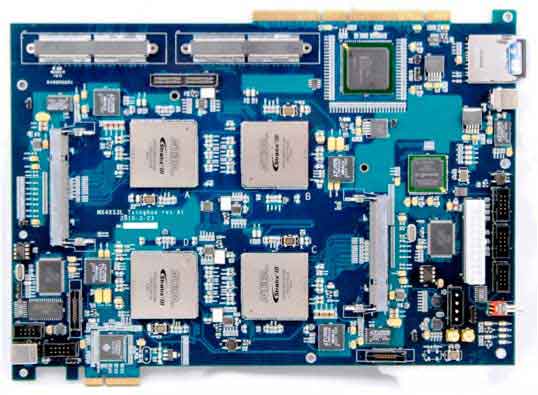

Quad Altera Stratix III EP3SL340F1517CxN，1,360,000LE (10M ASIC gates); 73.5Mbit on-chip memory; 2304 18x18 multiplier.
Each FPGA connects to DDR-2 memory module SODIMM, each module supports 1GB memory capacity. Added Massive Memory & High-end IO Capacities. Support Full LVDS Interconnections at 200MHz.
Replace and enrich a US$100K DINI Group (US) Sys, Priced at US$30K.

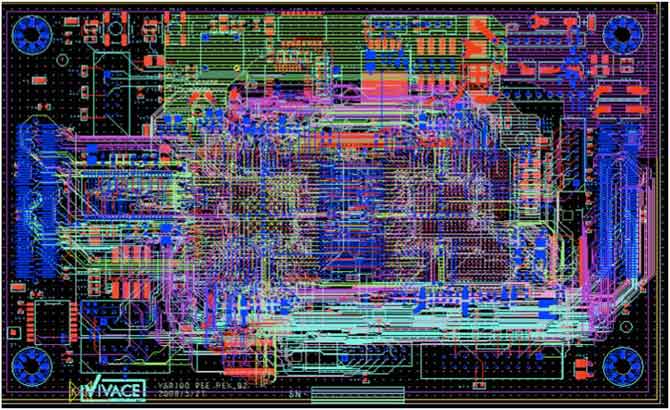

Altera Dual-FPGA System with DDR, High speed, 14 Layers, Schem-to-gerber, BOM optimization, 6 man-wk completion.
Offering
- Contract out clients’ sophisticated digital system development, along with precision analog and mixed-signal integration.
- Provide the best PCB and System engineering solutions.
- Take full responsibility to manage contracted projects and manufacturing subcontracts.
Skills
- Familiar with industry standards, MCU, processor, DSP, bus interfaces, memory access, IO peripherals and application SW.
- Capable in creative designs, optimizing system integrations and component selections, with emphasis on performance & BOM.
- Practical solutions to IC interface problems with "glue logic," built to fulfill the need of IC and system prototyping.
Design-Production Chain
- Work for clients to assure client-vendor team interface, progress alignment and contingency.
- Interface and manage PCB manufacturer and assembly houses.
- Save costs, time and inter-team management overhead.
- Give component developer a peace in mind of system capabilities.
FTC
Start up and Business Development
承包复杂数字系统开发, 整合模拟、混合、接口、存储、外壳机械加工 根据客户要求设计和制造优化的应用系统，交付完整工程解决方案 全面负责项目和相关外协制造 熟悉各种工业标准, MCU, 处理器, DSP, 各种总线接口, 存储器, IO外围设备和应用软件 实现创造性设计, 平衡优化功能、性能和成本，优选元器件供应商，满足客户BOM
解决IC之间"胶水逻辑"的设计和实现方面拥有丰富经验和娴熟技巧 与PCB制造商和组装厂直接接口与FPGA批发渠道链接的高端百万门多器件系统的现成产品和定制设计 科研和商用FPGA开发和验证系统R&D和实验微处理器主板 消费类产品的器件应用方案自动化测试VXI/PXI仪器模块
品质
高密度、高性能、高可靠
应用
航天, 军标, 工控, 医疗, 科研
市场
中国设计制造、中国和北美客户
